| Product Specifications: | |
| Method | Piston pusher with metallic diaphragm plate |
| Print Width | 54.1 mm(2.1″) |
| Number of nozzles | 1,280 (4 × 320 channels), staggered |
| Nozzle spacing (4 color printing) | 1/150″(0.1693 mm) |
| Nozzle spacing (Row to row distance) | 0.55 mm |
| Nozzle spacing (Upper and lower swath distance) | 11.81mm |
| Compatible ink | UV, Solvent, Aqueous, Others |
| Total printhead dimensions | 89(W) × 69(D) × 24.51(H) mm (3.5″ × 2.7″ × 1.0″) excluding cables & connectors |
| Weight | 155 g |
| Max.number of color inks | 2 colors |
| 4 colors | |
| Operating temperature range | Up to 60℃ |
| Temperature control | Integrated heater and thermistor |
| Jetting frequency | Binary mode : 30kHz / Grey-scale mode : 20kHz |
| Drop volume | Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink |
| Viscosity range | 10-12 mPa•s |
| Surface tension | 28-35mN/m |
| Grey-scale | 28-35mN/m 4 levels |
| Total Length | 248 mm (standard) including cables |
| Ink port | Yes |
| Number of ink ports | MH5420 : 2 × dual ports / MH5440 : 4 × dual ports |
| Alignment pin direction | Front (standard) |
* 6 Gen5 print heads arrangement(CMYK)
| Technical Specifications | |||

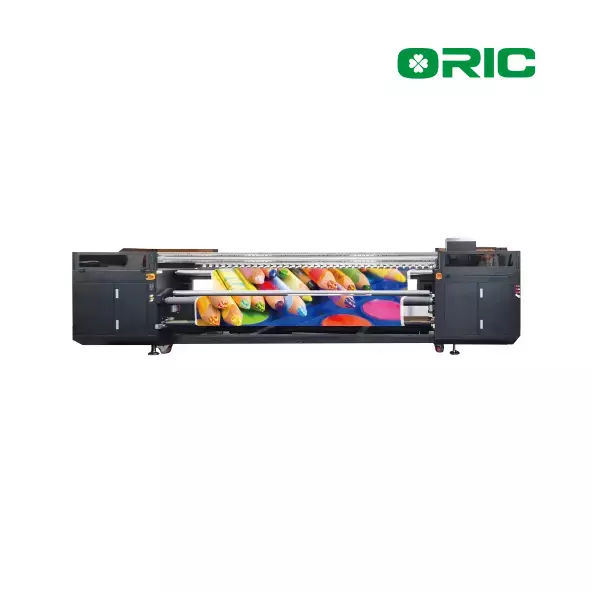

| Model | OR-1804E UV | ||
| Print Head | Four Epson I3200-U1 Print Heads | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 72in.（1820mm） | |
| Thickness | Maximum 39 mil(1 mm) | ||
| Weight | 132lb.（60kg） | ||
| Printing Width | 63in.（1600mm） | ||
| Ink Cartridges | Type | UV Ink | |
| Capacity | Continual Ink Supply System ( 1.25L ink tank ) | ||
| Color | CMYK + W + CMYK CMYK + W + CAMYK + BV CMYK + W +CAMYK + BV + MV | ||
| Ink Curing Unit | Dual UV LED Lamps （Wind Cooling） | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Interface | USB2.0 | ||
| Power Supply | AC 220V ± 10%, 50/60 HZ | ||
| RIP | Onyx / Photoprint | ||
| Dimensions(with stand) | 126(W)x36(D)x64(H) in. ( 3211(W)x910(D)x1634(H) mm ) | ||
| Weight(with stand) | 771 lb. (350 kg) | ||
| Package Dimensions | 132(W)x47(D)x72(H) in.( 3350(W)x1200(D)x1820(H) mm ) | ||
| Package Weight | 882 lb. (400 kg) | ||
| Packing Dimensions | Power on | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation） | ||
| Weight | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||
Three lines print heads in staggered layout makes the highestproductivity and various applications with optionalCMYK,W+CMYK,
CMYK+W,CMYK+W+CMYK (three layers)and W+CMYK+V (three layers) color modes.
