Description
Share to:
| Technical Specifications | |||
| Model | OR-1804E UV | ||
| Print Head | Four Epson I3200-U1 Print Heads | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 72in.（1820mm） | |
| Thickness | Maximum 39 mil(1 mm) | ||
| Weight | 132lb.（60kg） | ||
| Printing Width | 63in.（1600mm） | ||
| Ink Cartridges | Type | UV Ink | |
| Capacity | Continual Ink Supply System ( 1.25L ink tank ) | ||
| Color | CMYK + W + CMYK CMYK + W + CAMYK + BV CMYK + W +CAMYK + BV + MV | ||
| Ink Curing Unit | Dual UV LED Lamps （Wind Cooling） | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Interface | USB2.0 | ||
| Power Supply | AC 220V ± 10%, 50/60 HZ | ||
| RIP | Onyx / Photoprint | ||
| Dimensions(with stand) | 126(W)x36(D)x64(H) in. ( 3211(W)x910(D)x1634(H) mm ) | ||
| Weight(with stand) | 771 lb. (350 kg) | ||
| Package Dimensions | 132(W)x47(D)x72(H) in.( 3350(W)x1200(D)x1820(H) mm ) | ||
| Package Weight | 882 lb. (400 kg) | ||
| Packing Dimensions | Power on | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation） | ||
| Weight | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||

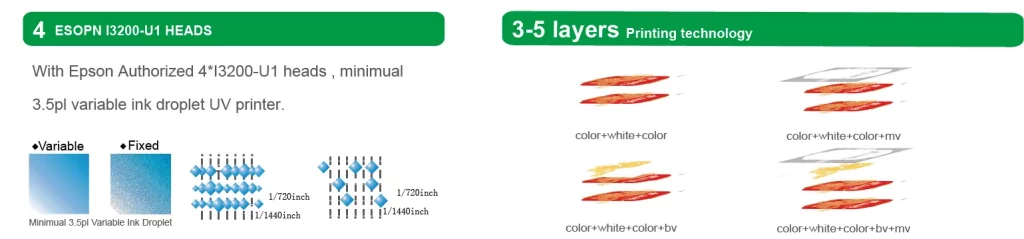

* Four I3200-U1 Print Heads Speed (cmyk)
| Technical Specifications | |||

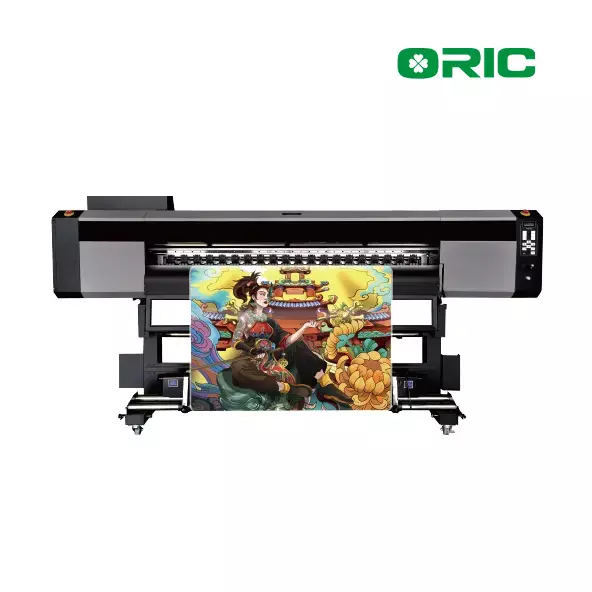

| Model | OR-1804E UV | ||
| Print Head | Four Epson I3200-U1 Print Heads | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 72in.（1820mm） | |
| Thickness | Maximum 39 mil(1 mm) | ||
| Weight | 132lb.（60kg） | ||
| Printing Width | 63in.（1600mm） | ||
| Ink Cartridges | Type | UV Ink | |
| Capacity | Continual Ink Supply System ( 1.25L ink tank ) | ||
| Color | CMYK + W + CMYK CMYK + W + CAMYK + BV CMYK + W +CAMYK + BV + MV | ||
| Ink Curing Unit | Dual UV LED Lamps （Wind Cooling） | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Interface | USB2.0 | ||
| Power Supply | AC 220V ± 10%, 50/60 HZ | ||
| RIP | Onyx / Photoprint | ||
| Dimensions(with stand) | 126(W)x36(D)x64(H) in. ( 3211(W)x910(D)x1634(H) mm ) | ||
| Weight(with stand) | 771 lb. (350 kg) | ||
| Package Dimensions | 132(W)x47(D)x72(H) in.( 3350(W)x1200(D)x1820(H) mm ) | ||
| Package Weight | 882 lb. (400 kg) | ||
| Packing Dimensions | Power on | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation） | ||
| Weight | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||

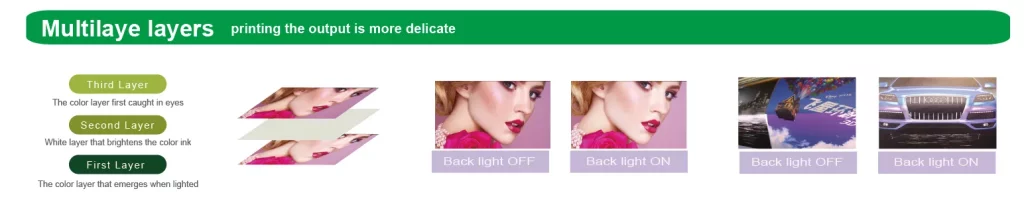

OR-1804E UV different color pattern collocation application scheme, to meet the needs of different customers, color white color three layer super transparent glass paste using environmental protection materials, green environmental protection; The collocation of multi-layer colors presents different display effects before and after lighting;
Color+ White+ Color + Matte Varnish + Hot Stamping Varnish, Perfect print output put, Applied to various types of glass decorative stickers and personalized packaging material printing, one-time printing, convenient and efficient.
Feature of OR-1804E UV
Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.
Installs a LED light panel, it helps our customer to check the front-lit or back-lit print quality before the order finish.

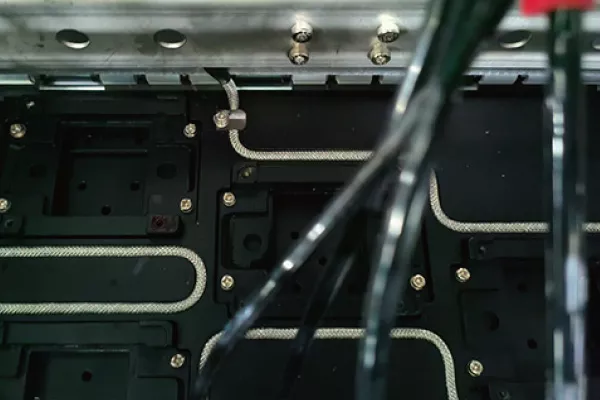

The bottom plate is equipped with heads heating to ensure the smoothness of the ink and provide high-quality output.
The automatic moisturizing and cleaning system not only protects the print head, but also ensures the smoothness of the ink-flow .
1.5L bulky ink bottle with lack of ink alarm system represents the advanced concept of industrial application.
High quality servo motor with good stability and long life.
