Description
Share to:
The Epson authorized i3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution.PrecisionCore print head has proven high durability and extended service life by Epson’s industrial printers.
| Product Specifications: | |
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink |
| Type | PrecisionCore MicroTFP print head |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm |
| Number of Nozzle | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch |
| Nozzle rows | 8 rows |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows |
| Max. number of colour inks | 4 colours |
| Droplet volumes | 6 pl (Single mode) |
| 6.3,1 2.3 pl (Multi mode) | |

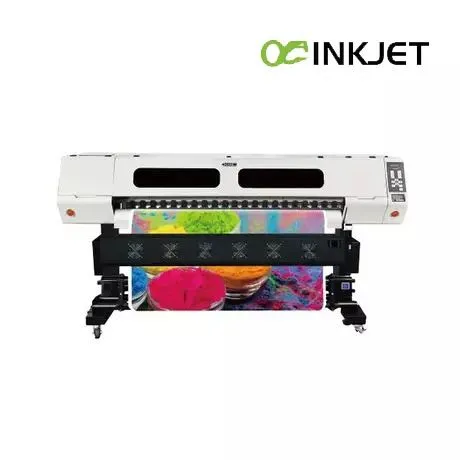

1.8m Dual 13200 Print Heads Speed
| Technical Specifications | ||||
| Model | OR-1801X | OR-1802X | ||
| Print Head | Single 13200 Print Heads | Dual 13200 Print Heads | ||
| Printing Technology | Piezoelectric Inkjet | |||
| Acceptable Media | Width | 71.6 in.(1820 mm) | ||
| Thickness | Maximum 59 mil(1.5 mm) | |||
| Weight | 132.2 lb.(60 kg) | |||
| Printing Width | 70.8 in.(1800 mm) | |||
| Ink Cartridges | Type | Eco Solvent Ink | ||
| Supply | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | |||
| Color | 4 colors (Cyan, Magenta, Yellow, Black) | |||
| Printing Resolution | Maximum 2400 dpi | |||
| Printing Speed | 3pass(360x1800dpi): 590 sqft (27 sqm/h) | 3pass(360x1800dpi): 590 sqft (55 sqm/h) | ||
| 4pass(720x1200dpi): 429 sqft (20 sqm/h) | 4pass(720x1200dpi): 429 sqft (40 sqm/h) | |||
| 6pass(720x1800dpi): 290 sqft (14 sqm/h) | 6pass(720x1800dpi): 290 sqft (27 sqm/h) | |||
| Media Heating System | Intergrated post heater & Infrared Dryer & Fan system | |||
| Interface | USB 3.0 | |||
| Power Supply | AC 220V ± 10%,50/60 HZ | |||
| Dimensions(with stand) | 125(W)x38(D)x55(H) in. | |||
| (2750(W)x730(D)x1388(H) mm ) | ||||
| Weight(with stand) | 380 kg | |||
| Package Dimensions | 114(W)x30(D)x30(H) in | |||
| ( 2900(W)x760(D)x760(H) mm ) | ||||
| Package Weight | 400 kg | |||
| Environment | Power on | Temperature: 59 ℉to 90 ℉ [15℃ to 32℃] (68℉[ 20℃] /Humidity: 35 to 80% (no condensation) | ||
| Power off | Temperature: 41 ℉to 104 ℉ [5℃ to 40℃] /Humidity: 20 to 80% (no condensation) | |||
| Accessories | Print Heads, USB cable, media clamp, manual, drain botle, ink cartridges, RIP software, etc. | |||
Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.
New pinch roller structureof three in group bringsmore stable feeding precision.
High-precision andhigh-stability tensioningpulley system.
High quality DC servomotor with good stabilityand long life.
The automatic cleaningassembly adds a single-wayvalve to increase thestability of the ink supply.
Infrered heater+cooling fan+LCD temperature controlpanel, more precise controlof the drying temperature.
Automatic moisturizingcleaning assemblyensures the stabilityof head cleaningand improvesworking stability.
Our range of wide format inkiet printers matche our knack for enginering and qualty with your desire for impeccable performance and careles production. You can producerol-to-roll indoor prints and long term outdoor signs. Wide applications in ight box posters, customized car stickers, background wallcloth abel printing, advertising sign. subwayadvertising, shopping mall advertising signs etc.
