| Product Specifications: | |
| Product name | EPSON i3200-U1 |
| Ink Type | UV ink |
| Type | PrecisionCore MicroTFP print head |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm |
| Number of Nozzle | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch |
| Nozzle rows | 8 rows |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows |
| Max. number of colour inks | 4 colours |
| Droplet volumes | 6 pl (Single mode) |
| 6.3,1 2.3 pl (Multi mode) | |
* Four I3200-U1 Print Heads Speed (cmyk+w+cmyk)
| Technical Specifications | |||

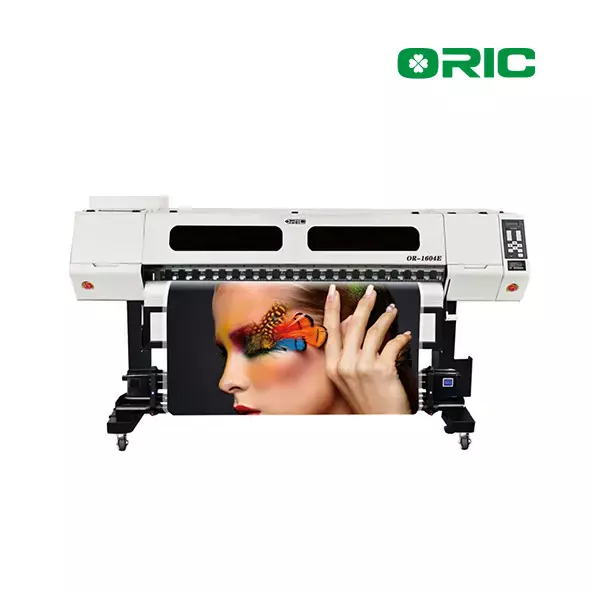

| Model | OR-1604E UV | ||
| Print Head | Four Epson I3200-U1 Print Heads | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 64in.（1620mm） | |
| Thickness | Maximum 39 mil(1 mm) | ||
| Weight | 132lb.（60kg） | ||
| Printing Width | 63in.（1600mm） | ||
| Ink Cartridges | Type | UV Ink | |
| Capacity | Continual Ink Supply System ( 1.25L ink tank ) | ||
| Color | CMYK + W + CMYK CMYK + W + CAMYK + BV CMYK + W +CAMYK + BV + MV | ||
| Ink Curing Unit | Dual UV LED Lamps （Wind Cooling） | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Interface | USB2.0 | ||
| Power Supply | AC 220V ± 10%, 50/60 HZ | ||
| RIP | Onyx / Photoprint | ||
| Dimensions(with stand) | 119(W)x41(D)x56(H) in. ( 3010(W)x1048(D)x1420(H) mm ) | ||
| Weight(with stand) | 661 lb. (300 kg) | ||
| Package Dimensions | 124(W)x41(D)x59(H) in.( 3140(W)x1048(D)x1490(H) mm ) | ||
| Package Weight | 771 lb. (350 kg) | ||
| Packing Dimensions | Power on | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (no condensation) | |
| Power off | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation） | ||
| Weight | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. | ||
Leadshine DC Servo Motor
THK high precision mute rail
lgus mute drag chain, quite working environment guaranteed
Automatic up-and-down capping station, protects the print head more effectively
Feature of OR-1604E UV
Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.
Installs a LED light panel, it helps our customer to check the front-lit or back-lit print quality before the order finish.
Wind Coolingdrying technology
The automatic moisturizing and cleaning system not only protects the print head, but also ensures the smoothness of the ink-flow .
1.5L bulky ink bottle with lack of ink alarm system represents the advanced concept of industrial application.
High quality servo motor with good stability and long life.
