Description
Share to:
| Product Specifications: | |
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous |
| Type | PrecisionCore MicroTFP printhead |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm |
| Number of Nozzle | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch |
| Nozzle rows | 8 rows |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows |
| Max. number of colour inks | 4 colours |
| Droplet volumes | 6 pl (Single mode) |
| 6.3,1 2.3 pl (Multi mode) | |
* Four I3200 Print Heads Speed

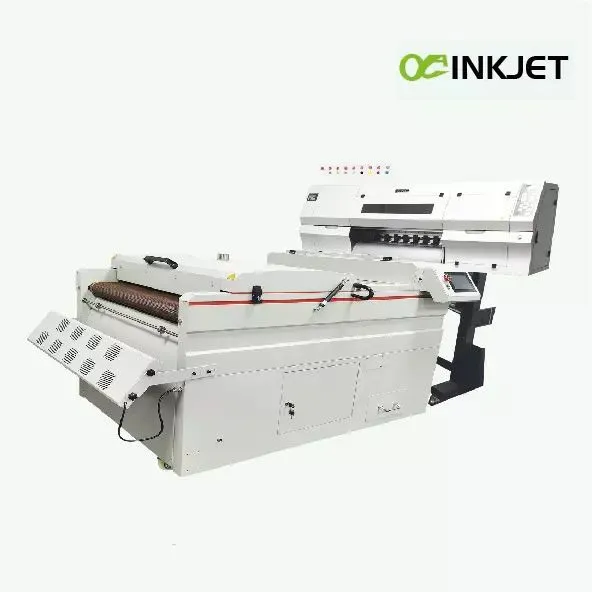

| T-shirt Digital Heat Transfer Printing Machine | ||
| Model | OR-7604 | |
| Print Head | 4 I3200 Print Heads Optional | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 760 mm |
| Thickness | Maximum 39 mil(1 mm) | |
| Printing Width | 730 mm | |
| Ink Cartridges | Type | Transfer Pigment Ink |
| Capacity | Continual Ink Supply System ( 220ML ) | |
| Color | CMYK + W | |
| Applicable Medium | Transfer film | |
| Color Manage | ICC or density curve | |
| Media Heating System | Powder & color fixing machine | |
| Interface | RJ-45/LAN | |
| RIP Software | Main top | |
| Power Supply | 50HZ/60HZ,220V/110V/10A | |
| Environment | Temperature | 22℃ to 28℃ |
| Humidity | 40% to 70% | |
| Printer Dimensions(With Stand) | L2100mm*W1200mm*H1800mm | |
| Packing Dimensions | L2123mm*W1210MM*H1337mm | |
| Weight | G.W : 275kg N.W :225kg | |
| Shaking Powder and Color Fix Machine | |
| Model | H6501 |
| Media Width | 0-600mm |
| Applicable Medium | Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc. |
| Powder Control | Powder shake control, powder control, powder direction and volume control |
| Heating & Drying Function | Multi-stage heating system, drying, cold air fan function |
| Rewind Function | Automatic induction winding |
| Electrical Parameters | Rated Voltage: 220V Rated Current: 20A |
| Rated Power: 3.42KW Power Consumption: 1KW-2.5KW | |
| Packing Size & Weight | Standard with 4heads : 2900* 1310* 1367mm |
| G.W: 275kg. N.W: 225kg | |
▼ Design Pattern
Use photoshop, illustrator or other software to design your pattern.
▼ Print Your Design
Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.
▼ Powdering
Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.
▼ Heat Press
Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.
Stable bulk system ensures amazing printing speed.
High-quality hot-melt powder, can be used repeatedly.
Efficient powder shaking device, powder shaking is clean.
Flip top powder box, simple operation, convenient to add powder.
Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.
