| Product Specifications: | |
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous |
| Type | PrecisionCore MicroTFP printhead |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm |
| Number of Nozzle | 3200 |
| Nozzle pitch/nozzle row | 1/300 inch |
| Nozzle rows | 8 rows |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows |
| Max. number of colour inks | 4 colours |
| Droplet volumes | 6 pl (Single mode) |
| 6.3,1 2.3 pl (Multi mode) | |
* Four I3200 Print Heads Speed

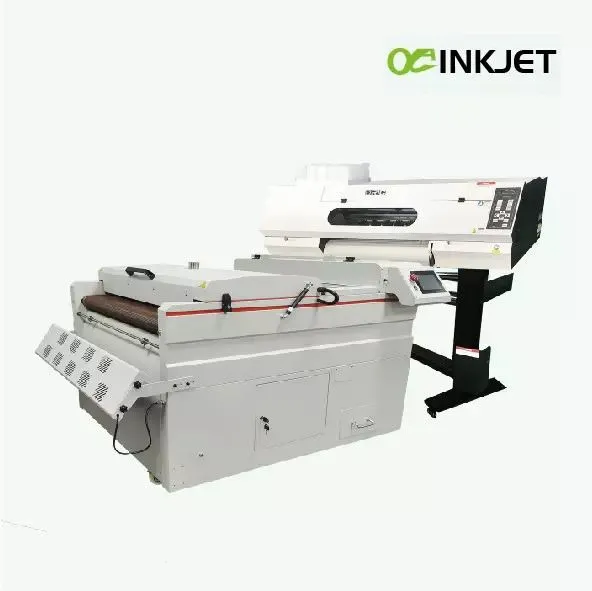

| T-shirt Digital Heat Transfer Printing Machine | ||
| Model | OR-6204 | |
| Print Head | 4 I3200 Print Heads Optional | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 620 mm |
| Thickness | Maximum 39 mil(1 mm) | |
| Printing Width | 600 mm | |
| Ink Cartridges | Type | Transfer Pigment Ink |
| Capacity | Continual Ink Supply System ( 220ML ) | |
| Color | CMYK + W | |
| Applicable Medium | Transfer film | |
| Color Manage | ICC or density curve | |
| Media Heating System | Powder & color fixing machine | |
| Interface | RJ-45/LAN | |
| RIP Software | Main top | |
| Power Supply | 50HZ/60HZ,220V/110V/10A | |
| Environment | Temperature | 22℃ to 28℃ |
| Humidity | 40% to 70% | |
| Printer Dimensions(With Stand) | L1620mm*W620mm*H1280mm | |
| Packing Dimensions | L1700mm*W700MM*H720mm | |
| Weight | G.W : 230kg N.W :180kg | |
| Shaking Powder and Color Fix Machine | |
| Model | H6501 |
| Media Width | 0-600mm |
| Applicable Medium | Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc. |
| Powder Control | Powder shake control, powder control, powder direction and volume control |
| Heating & Drying Function | Multi-stage heating system, drying, cold air fan function |
| Rewind Function | Automatic induction winding |
| Electrical Parameters | Rated Voltage: 220V Rated Current: 20A |
| Rated Power: 3.42KW Power Consumption: 1KW-2.5KW | |
| Packing Size & Weight | Standard with 2heads : 1800* 1130* 1150mm |
| G.W: 300kg N.W: 190kg | |
▼ Design Pattern
Use photoshop, illustrator or other software to design your pattern.
▼ Print Your Design
Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.
▼ Powdering
Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.
▼ Heat Press
Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.
Stable bulk system ensures amazing printing speed.
High-quality hot-melt powder, can be used repeatedly.
Efficient powder shaking device, powder shaking is clean.
Flip top powder box, simple operation, convenient to add powder.
External power supply， intelligent rolling system.
Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique.
